VSDISPLAY DVI VGA Audio LCD Controller Board
VSDISPLAY DVI VGA Audio LCD Controller Board - Image 2
VSDISPLAY DVI VGA Audio LCD Controller Board - Image 3
VSDISPLAY DVI VGA Audio LCD Controller Board - Image 4
VSDISPLAY DVI VGA Audio LCD Controller Board - Image 5
VSDISPLAY DVI VGA Audio LCD Controller Board - Image 6
ELECTRONICS

VSDISPLAY DVI VGA Audio LCD Controller Board

Original price was: 27.99$.Current price is: 24.99$.

3456 in stock

Wholesale Price: 21.45$ ( Minimum Quantity: )

Add to WishlistRemove from Wishlist
Add to Wishlist

Dark World Marketplace Services

  • Done Satisfaction Guaranteed
  • Done Fast and secured delivery
  • Done Dark World Market place 24/7 Escrow support
  • Done All payments in this Marketplace are with Cryptocurrency
SKU: GA001 Categories: , ,
FACLAP MARKET
FACLAP MARKET
Report Abuse

Description

 4:3 1280X960 DV170YGZ-N10 DV170YGM-N10

Color For DV170YGZ/DV170YGM
Brand VSDISPLAY
Voltage 12 Volts
Material Metal
Item Weight 0.09 Kilograms

https://darkexplorer.link/?post_type=product&p=6392&preview=true



About this item

  • Compatible with:Fit for Gen3 LCD Screens which have 4:3 1280X960 DV170YGM N10 / DV170YGZ N10 LCD
  • Feature:This board (resolution 1280×960) can solve the cut off screen problem on the Gen 3 cabinets immediately. But help to noticed that pls verify that you have a GEN 3 LCD Screen. Screen part number will match DV170YGZ-N10 or DV170YGM-N10. Will not work with any other screen

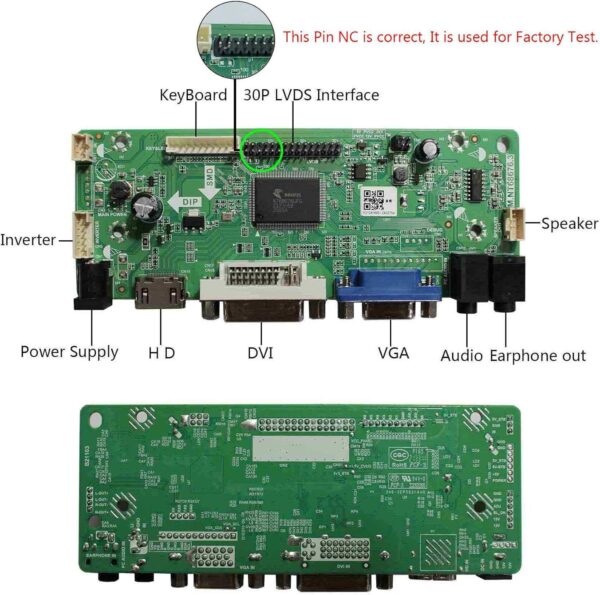

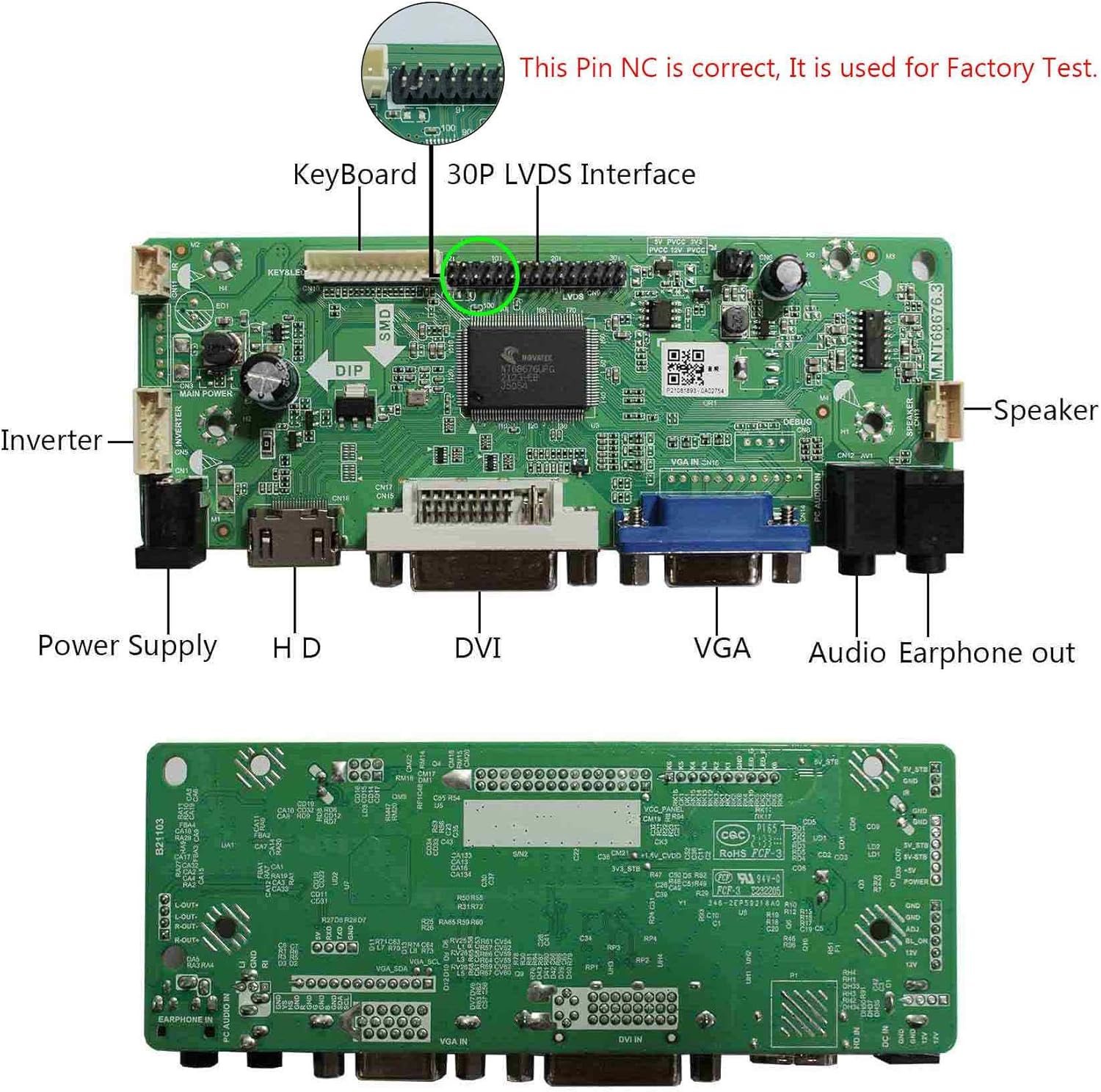

  • Video Input:DVI VGA; Audio Output: Speaker Connector
  • Come In Standby Model When Not Input Signal. Standby Model <1W
  • Recommend Power Adapter Spec: Input Power Adapter: 12V DC, 2A or More than 2A

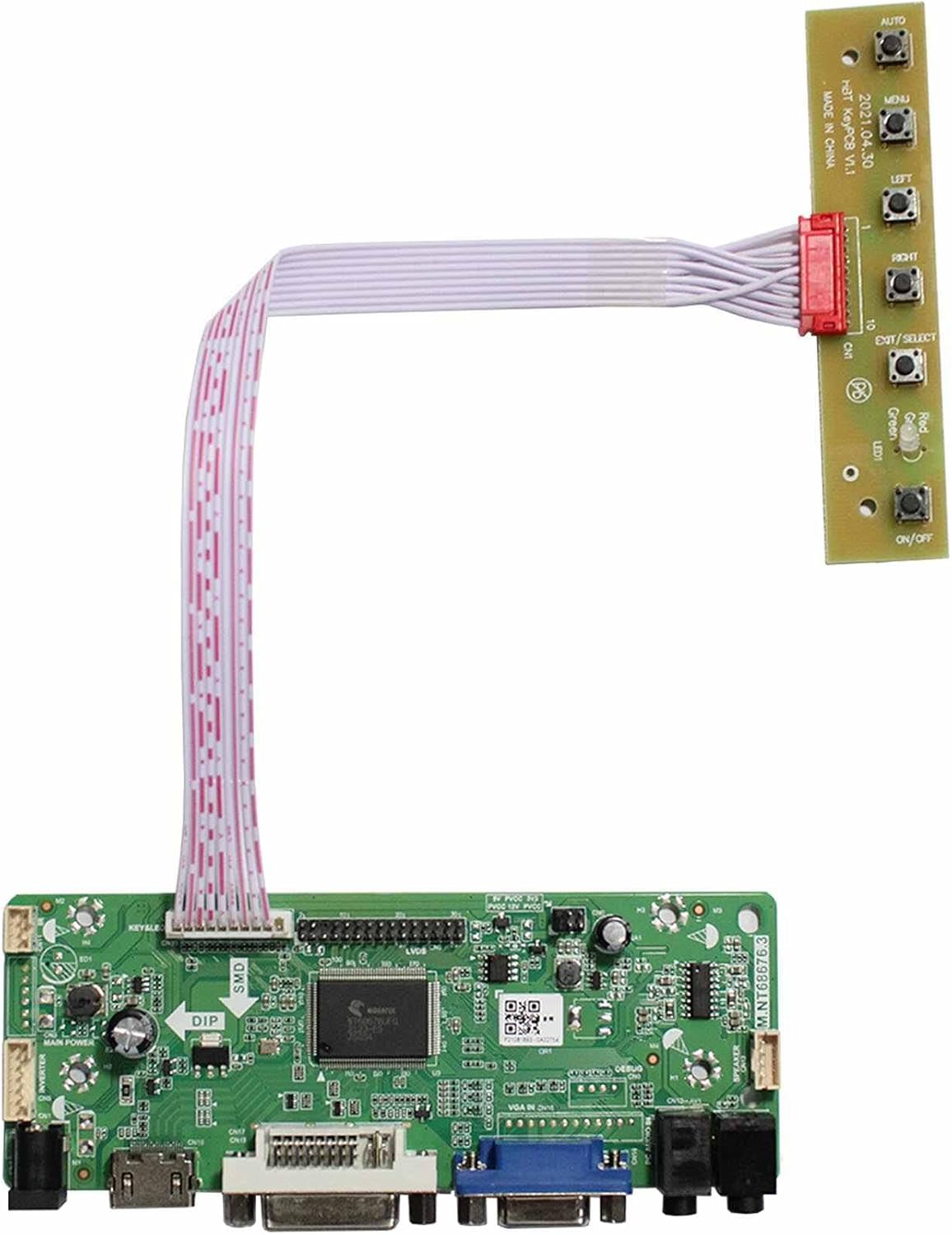

  • Packing list:1× VGA DVI LCD Controller Board M.NT68676; 1× Screw And Nut For GND Connection;1× Keyboard With Cable. There is No Power Adapter in The Packing List,pls prepare by yourself

  • About this item

    • LCD board video input: VGA DVI Audio ,Audio Output: Speaker Connector (8ohm 2W 4Pin PH2.0 connection),Please use in insulated environment.
    • Input power :100Vac-240Vac,Output Voltage: 12Vdc ,Output Current: 2A.Connector: 5.5mmx2.1mm. Wire Length: 5FT 1.5M
    • Specialized work for 17″ DV170YGZ-N10 DV170YGM-N10 1280×960 LVDs LCD Screen.
    • Perfect for modding the Machine to connect. For Gen3 LCD Screens which have 4:3 1280X960 DV170YGM N10 / DV170YGZ N10 LCD. This board (resolution 1280×960) can solve the cut off screen problem on the Gen 3 cabinets immediately.

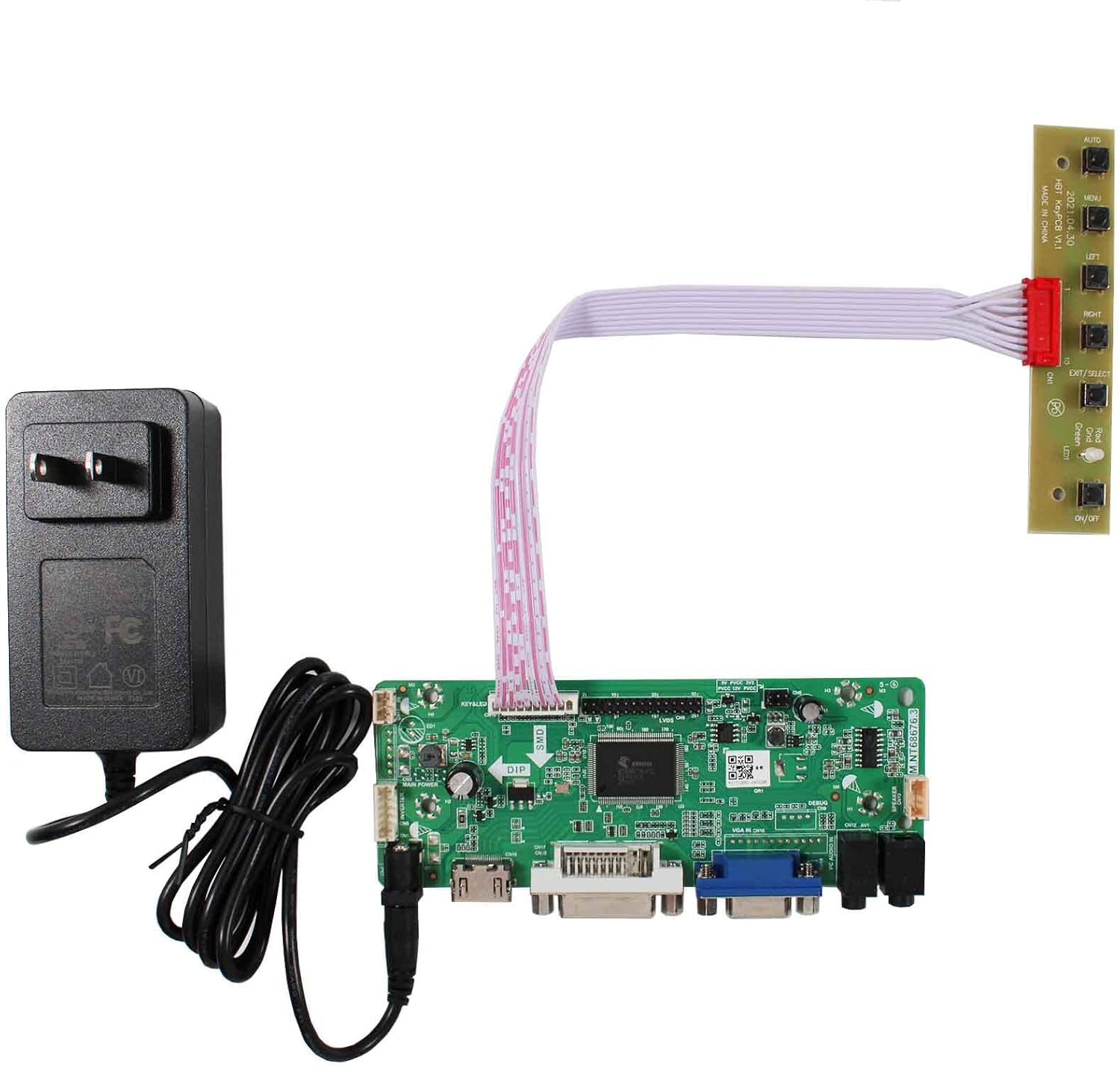

    • Packing lists: 1× VGA DVI LCD Controller Board ,1× Screw And Nut For GND Connection, 1× Keyboard With Cable,1× 12V 2A US UL Certification Power Adapter, 5.5mmx2.1mm to 3.5mmx1.35mm transfer connector in the package.
